Our Products
The complete range of Oasis DC air compressors. Commercial-grade engineering for demanding applications.
Air Compressors
Choose from 12V and 24V models to suit your application.
Specifications Comparison
Compare all models side by side.

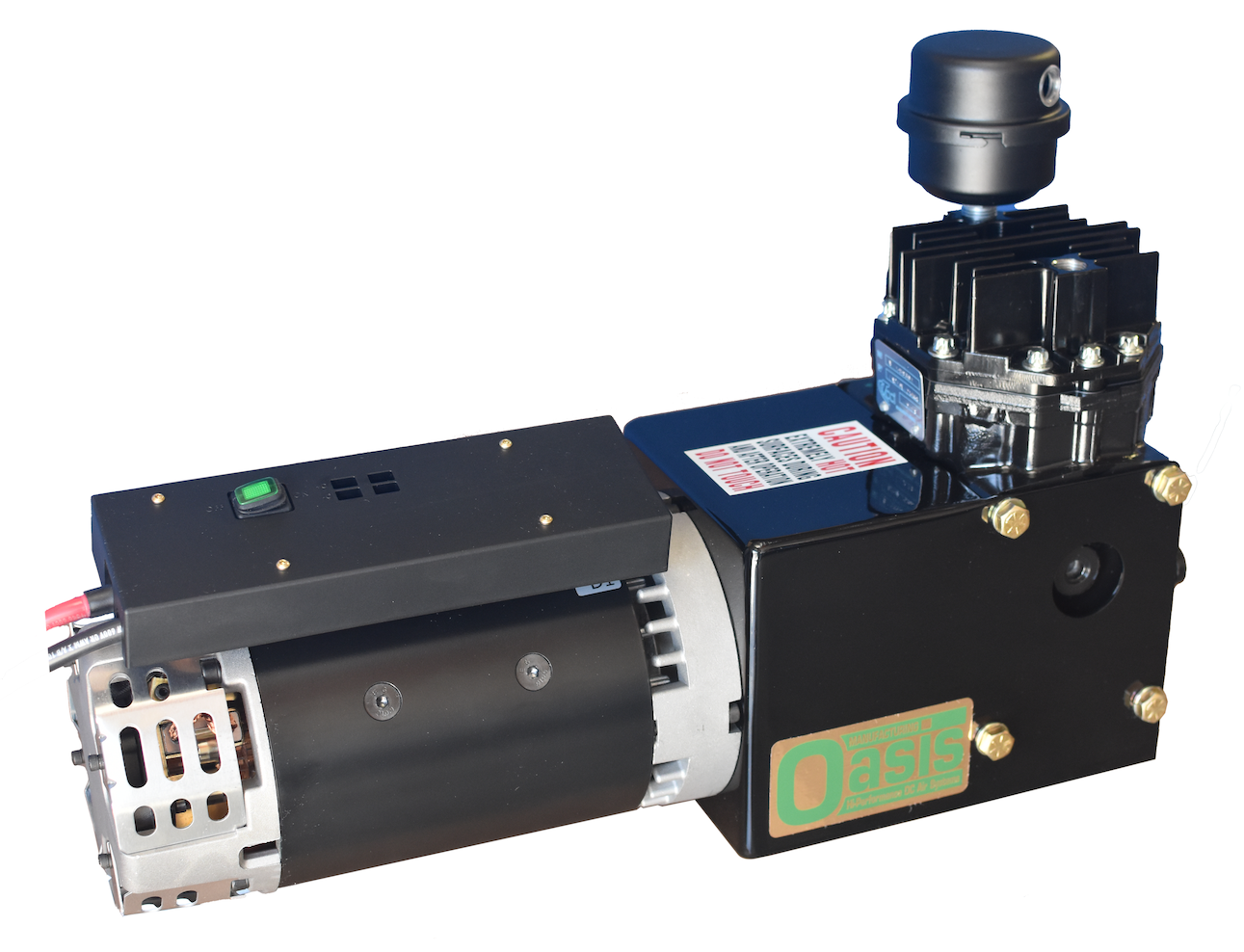

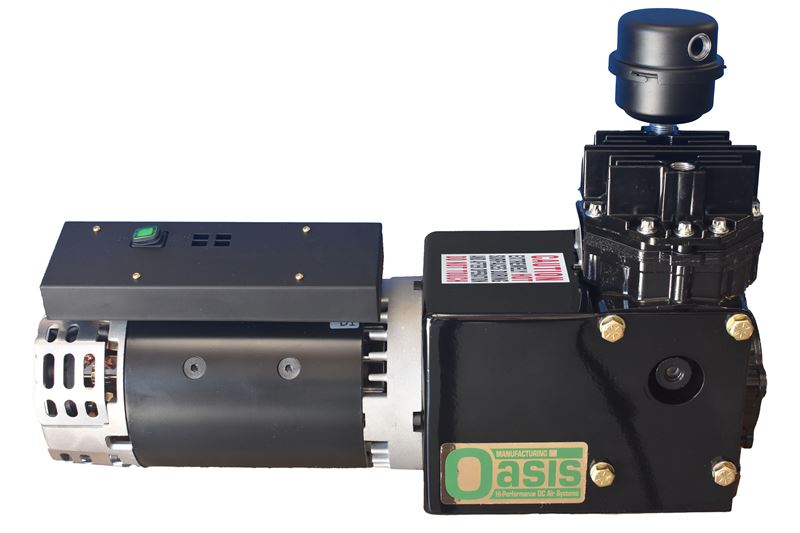

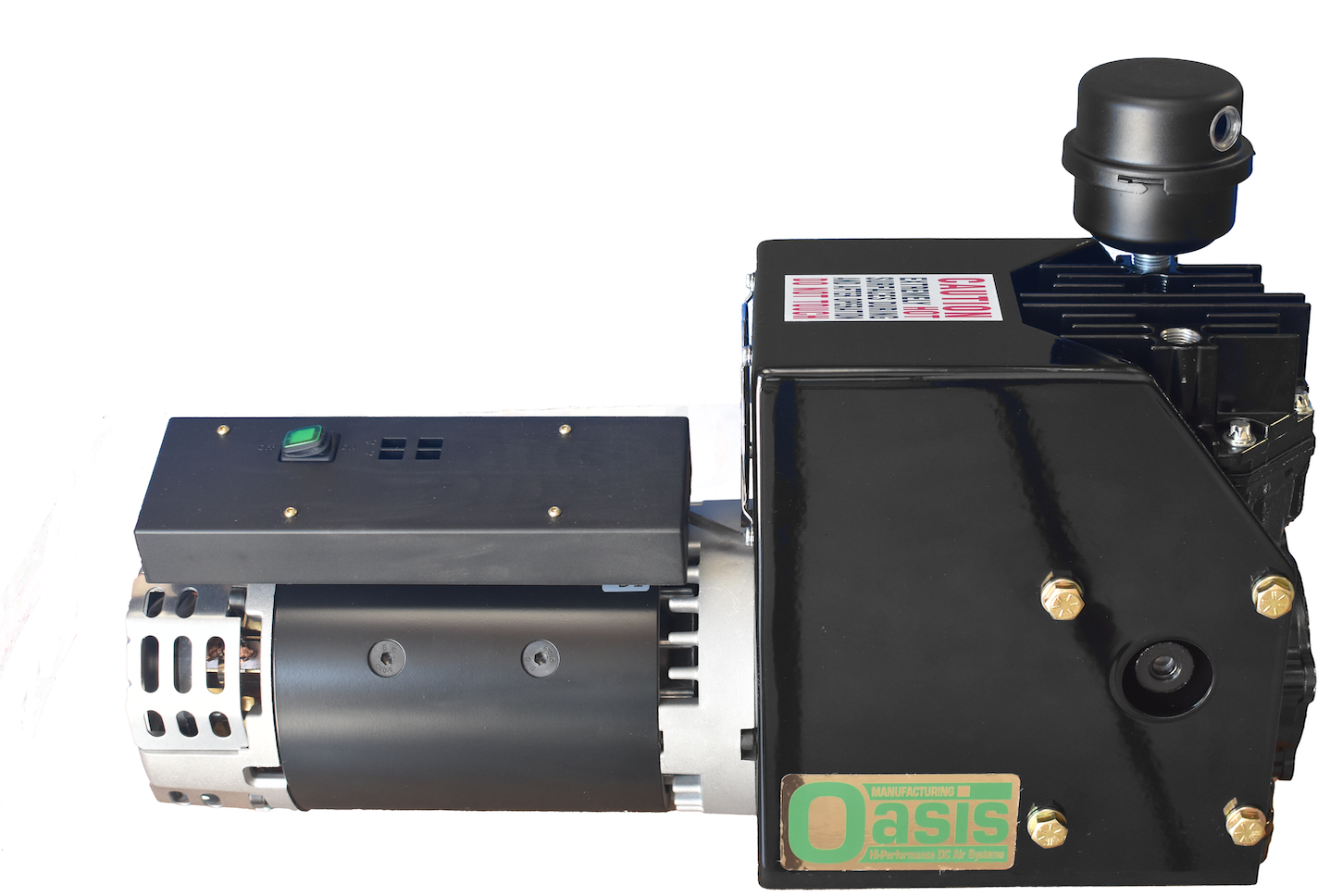

| Specification | XDM3000-1212V | XDM3000-2424V | XDM4000-1212V | XDM4000-2424V |
|---|---|---|---|---|
| Operating Voltage | 12V DC | 24V DC | 12V DC | 24V DC |
| Max Pressure | 1380 kPa (200 PSI) | 1380 kPa (200 PSI) | 1380 kPa (200 PSI) | 1380 kPa (200 PSI) |
| Flow Rate (Free) | 425 L/min (15 CFM) | 425 L/min (15 CFM) | 425 L/min (15 CFM) | 425 L/min (15 CFM) |
| Flow Rate @ 100 PSI | 255 L/min (9 CFM) | 226 L/min (8 CFM) | 255 L/min (9 CFM) | 255 L/min (9 CFM) |
| Current Draw | 190 amps max load | 110 amps max load | 190 amps max load | 110 amps max load |
| Continuous Operation | Up to 30 minutes at 690 kPa (100 PSI), 21 degrees C | Up to 30 minutes at 690 kPa (100 PSI), 21 degrees C | 100% continuous at 1380 kPa | 100% continuous at 1380 kPa |
| Duty Cycle | 100% continuous, then 50% for extended operation | 100% continuous, then 50% for extended operation | 100% continuous duty | 100% continuous duty |
| Dimensions | 533mm x 178mm x 279mm (21" x 7" x 11") | 533mm x 178mm x 279mm (21" x 7" x 11") | 533mm x 178mm x 279mm (21" x 7" x 11") | 533mm x 178mm x 279mm (21" x 7" x 11") |
| Weight | 28.1 kg (62 lbs) | 28 kg (62 lbs) | 28.1 kg (62 lbs) | 28.1 kg (62 lbs) |
| Temperature Range | -20 degrees C to 65 degrees C | -20 degrees C to 65 degrees C | -20 degrees C to 65 degrees C | -20 degrees C to 65 degrees C |
| Max Restart Pressure | 1034 kPa (150 PSI) | 1034 kPa (150 PSI) | 1034 kPa (150 PSI) | 1034 kPa (150 PSI) |
Applications
Oasis compressors at work in the field.
Get Started
Ready to Upgrade Your Air System?
Talk to our team about the right Oasis compressor for your application.
Technical Resources
Download manuals, data sheets, and wiring diagrams.
